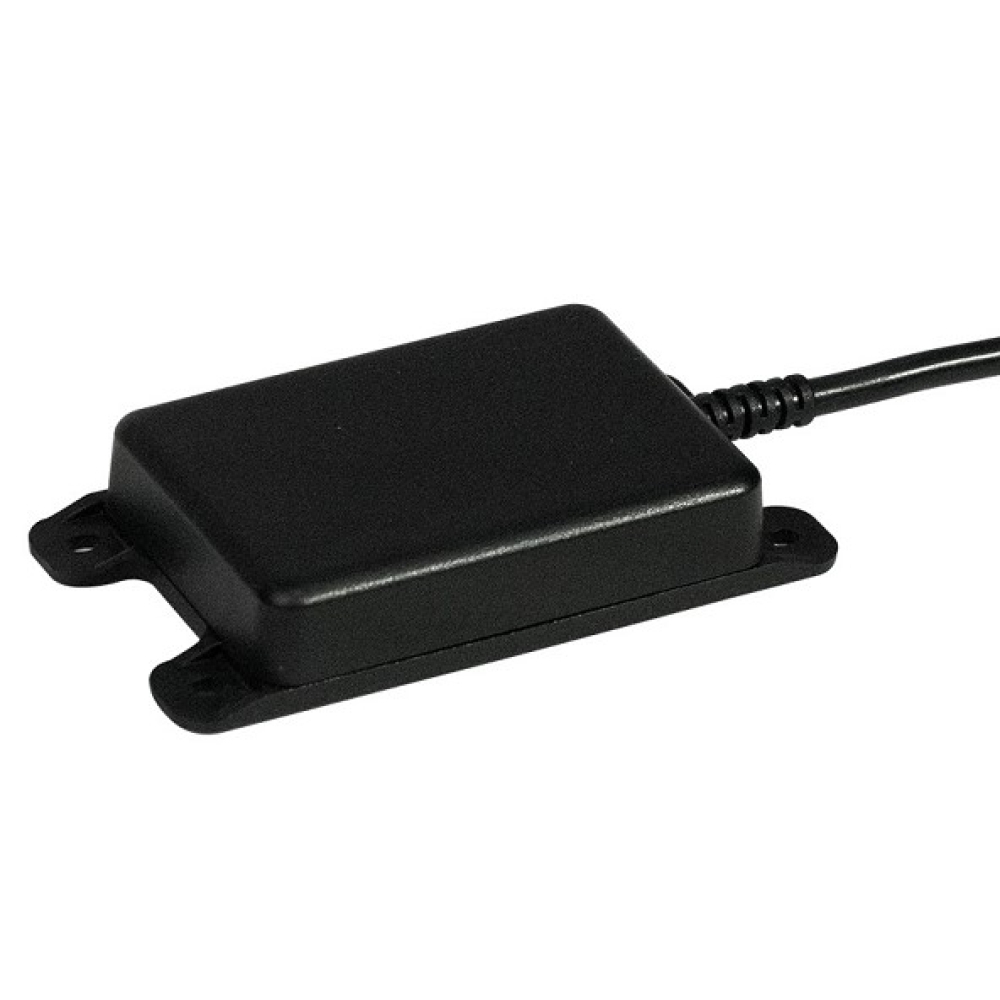

TVA2-200 is a compact K-band altimeter radar. which can measure the height/distance from drone to ground surface(water surface, ground, plant). It is compatible with Ardupilot/PX4 flight control platform. It meets the multi-field ranging needs of unmanned aerial platforms (UAV/UAS), which is widely used for agriculture drones, surveying drones, mapping drones and patrol drones.
24GHz MMW radar
Safety range measurement and collision avoidance in UAVs
Work in 24GHz Band for the detection of moving targets
Adaptable for grasslands and other environment
With UART interface
With measurement accuracy of 0.1m
With the measurement range of 200m
RoHS compliant
|
Parameter |
TVA2-200 |
|
|
Operating Frequency |
|
24GHz~24.25Ghz |
|
Range |
Min |
0.2m |
|
|
Max. |
200m |
|
|
Accuracy |
0.03m |
|
Azimuth Angle(-19dB) |
|
±10° |
|
Vertical Angle(-19dB ) |
|
±15° |
|
Mechanical Details |
|
|
|
Weight |
|
0.0075kg(PCBA) |
|
Dimensions (H/W/D) |
|
58*46mm (PCBA) |
|
Other Information |
|
|
|
Initialization Time |
|
＜10s |
|
Operating Voltage |
|
DC9~24V~ |
|
Power Consumption |
|
2W |
|
Max. Transmit Power (EIRP) |
|
20dBm |
|
Operating & Storage Temperature |
|
-40…+85°C | |
|
Interfaces |
|
UART-TTL |
|
Protection Grade |
|
IP67 |
