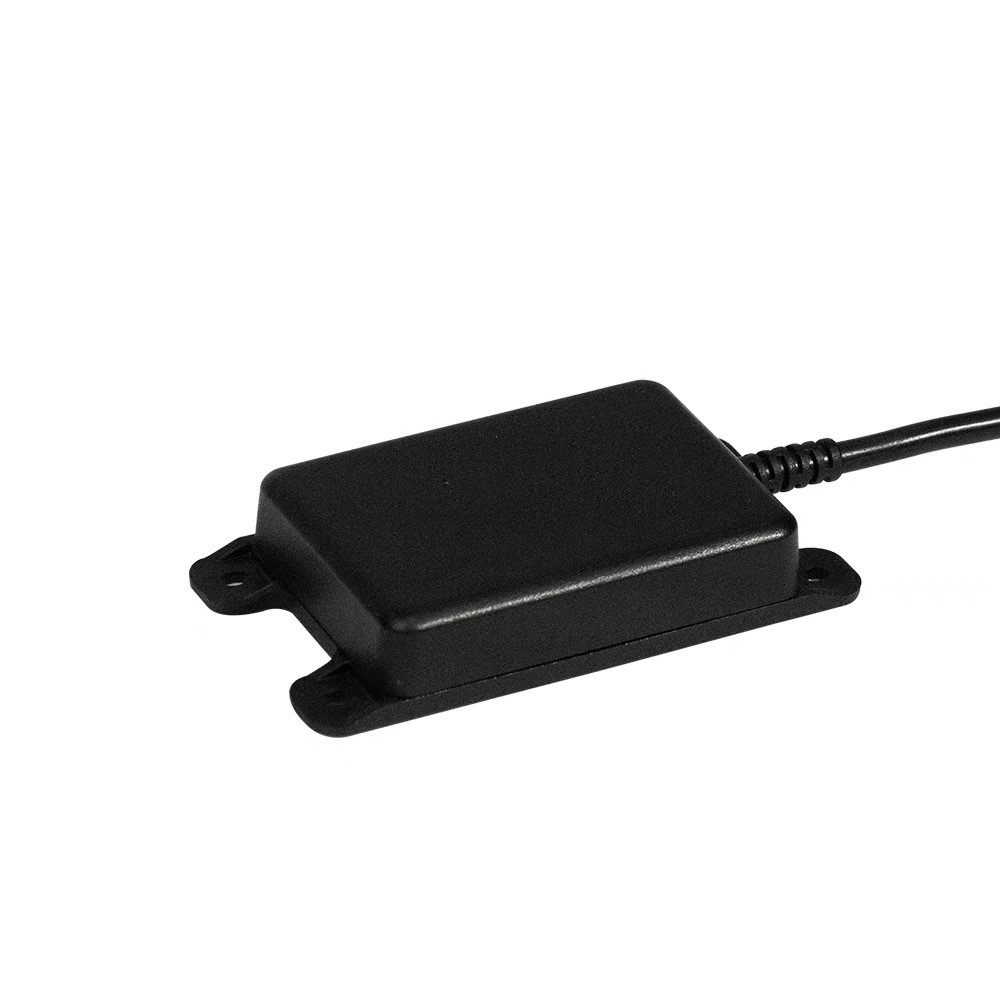

TVA2-50 24Ghz Drone Altimeter Radar for Hight measurement

Operating Frequency:24~24.25GHz
Range: 0.2~50m
Range Accuracy:0.03m
Angle: Azimuth: 31°, Vertical 20°
Dimensions (H/W/D): 45*45*6mm
Operating Voltage: DC5V
Power Consumption:1.3W
Max. Transmit Power (EIRP):<20dBm
Operating & Storage Temperature:-40…+80°C
Interfaces: UART-TTL
Relative Humidity: 0…95%
Protection Grade:IP67

Product Description





TVA2-50 Drone Altimeter radar

        TVA2-50 is a compact K-band altimeter radar. which can measure the height/distance from drone to ground surface(water surface, ground, plant). It is compatible with Ardupilot/PX4 flight control platform.  It meets the multi-field ranging needs of unmanned aerial platforms (UAV/UAS), which is widely used for agriculture drones, surveying drones, mapping drones and patrol drones.

Features
